Oil-free compressed air in the most cost-effective form

BOGE
Converter

The most economical way to produce absolutely oil-free compressed air to ISO 8573-1 Class 0. The BOGE Converter catalytically removes all oils and hydrocarbons from compressed air — independent of ambient conditions and universally applicable.

ISO 8573-1 Class 0 Up to 32.4 m³/min 16 bar Worldwide unique principle Ambient-independent

At a Glance

The safest path to
Class 0 compressed air

ISO 8573-1 Class 0 — Absolutely oil-free

Still looking for the most economical way to produce absolutely oil-free compressed air to Class 0? With the BOGE Converter you have reached your goal. There is no safer system for effectively removing oils and hydrocarbons from compressed air. Unlike oil-free compressors, the quality is not dependent on the hydrocarbon content of the surrounding air — because the catalyst is unaffected by the temperature or humidity of the air being treated.

Enquire →

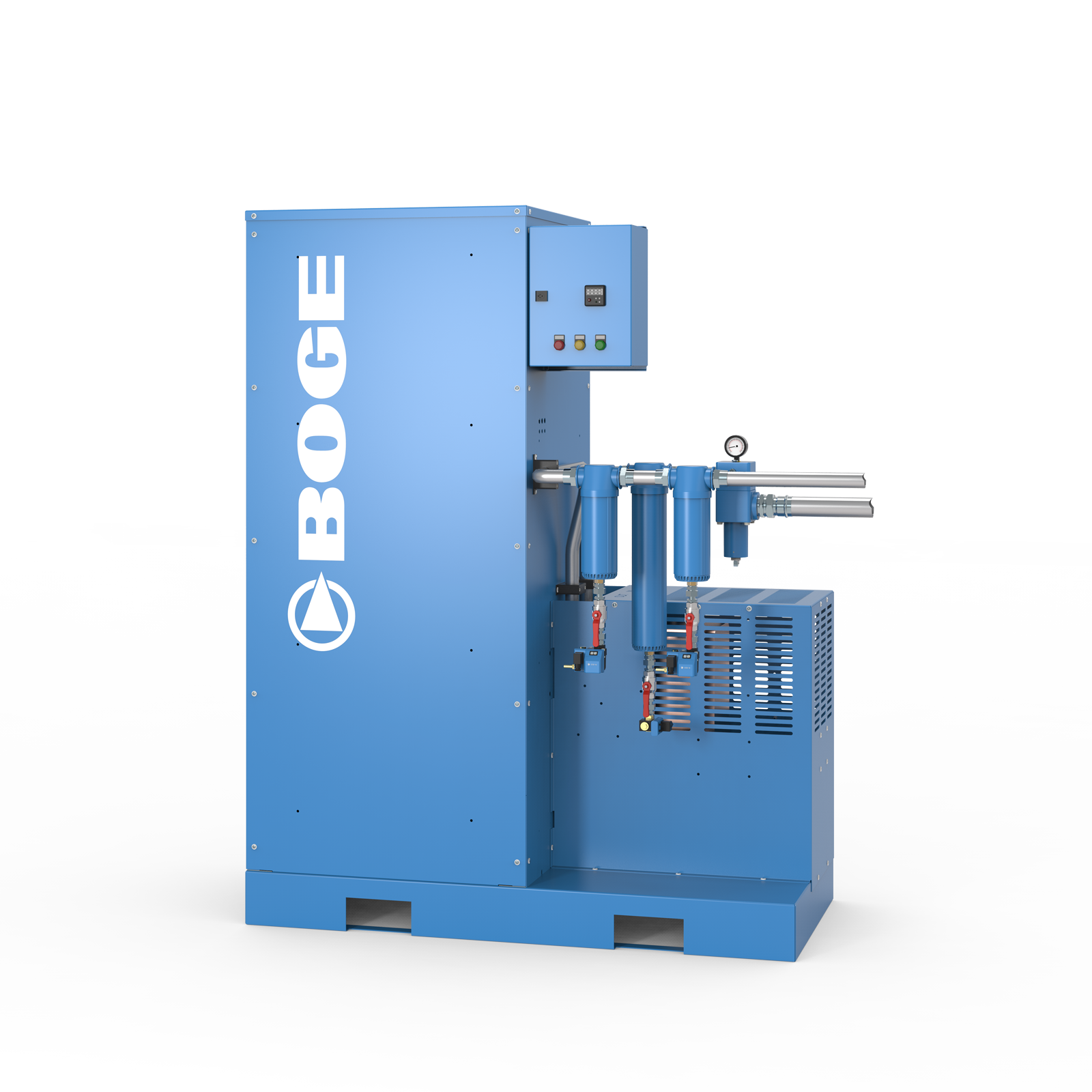

BOGE Converter BC Series
Product image

Key Specifications

Air quality

ISO 8573-1 Class 0

Max flow rate

Up to 32.4 m³/min

Max operating pressure

16 bar

Principle

Catalytic oxidation

Ambient independence

Yes — unaffected by humidity or temperature

Models available

8 (BC 11 – BC 330)

Design Highlights

More than filtration —
catalytic destruction

Worldwide unique principle

The BOGE Converter is the only technology available on the market that can permanently deliver a residual oil content of Class 0 and guarantee oil-free condensate. A catalyst actively converts the oils and hydrocarbons contained in the compressed air into water and CO₂. Unlike conventional filtration systems such as activated carbon, the air quality remains consistently at the highest level.

Universally applicable

A major advantage of the BOGE Converter BC series is its proverbial flexibility: a Converter can operate both in a compressor station and downstream of a fixed-speed or variable-speed compressor. It can even be used optimally as a terminal device for partial compressed air flows.

Apropos safety

All models of the BC series are monitored by temperature sensors: this applies to the heating temperature in the internal heater as well as to the outlet temperature from the converter bed. If there are deviations from the setpoint, the controller adjusts automatically or shuts the catalyst down and closes the shut-off valve if the temperature is exceeded.

Multifunctional catalyst

The integrated catalyst performs several tasks: it breaks down long-chain hydrocarbons into water and carbon dioxide, converts silicone into silicate (siloxane content ≤ 0.3 µg/Nm³ according to NIOSH 1501), eliminates carbon monoxide to a level of < 0.1% and also reduces germs, bacteria and viruses.

Is the BOGE Converter right
for your application?

Whether it is energy balance, retrofit options or specific project details — our specialists are available to answer all your questions and recommend the correct BC model for your flow rate and operating pressure.

Request Consultation → ← All Air Treatment
