Moisture-free compressed air for every application

Compressed Air
Dryers

Moisture in compressed air causes corrosion, production downtime and quality losses. The BOGE dryer range covers every requirement — from standard refrigerant drying to pressure dew points of −70°C, breathing air and point-of-use membrane drying.

Refrigerant Dryers Adsorption Dryers Dew points to −70°C Breathing Air Approved Membrane Drying
Complete Dryer Range

Refrigerant, adsorption
& specialist — every dew point covered

BOGE dryers ensure a consistently dry and reliable compressed air supply, protecting systems, tools, and end products in the long term. Select the right technology for your required dew point, pressure and flow rate.

BOGE DT Series
Product image

Refrigerant Dryer — Visionary & Practical
DT Series
Refrigerant Dryer — Standard Pressure
R-513A — Low CO₂ footprint
Flow range
0.40 – 150 m³/min
Max pressure
16 bar
Pressure dew point
+3°C (typical)
Refrigerant
R-513A
Operating modes
5
Frequency-controlled scroll refrigeration compressor and speed-controlled fan — adapts output to actual demand for maximum energy savings
Five operating modes for maximum flexibility across varying load conditions
Climate-friendly R-513A refrigerant with low global warming potential — future-proof and sustainable
Smallest CO₂ footprint and lowest power consumption in its class
Wide range: DT 4 (0.40 m³/min, G½) to DT 1500 (150 m³/min, DN 200)
Enquire →

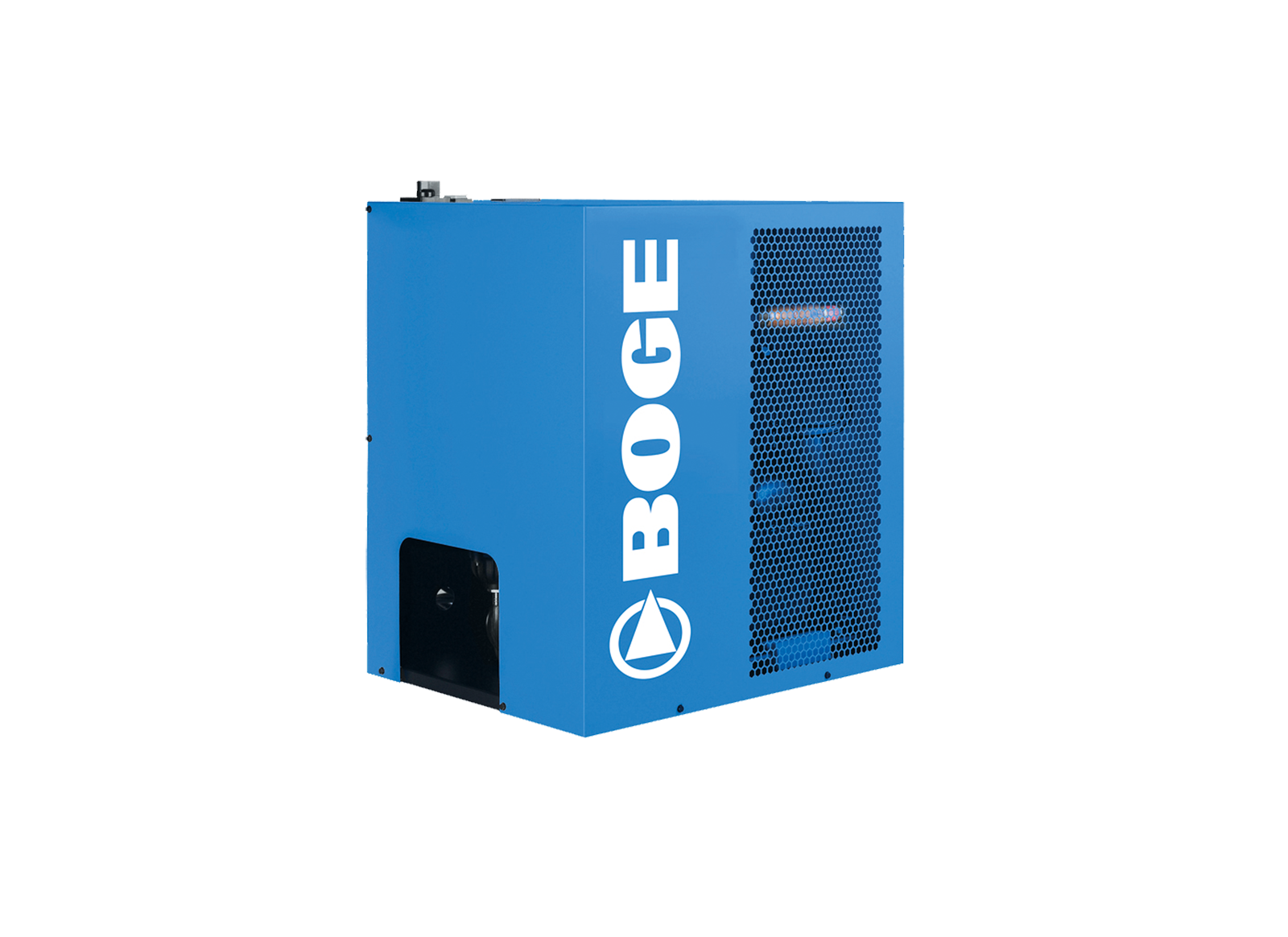

BOGE DH-2 Series
Product image

High-Pressure Refrigerant Dryer
DH-2 Series
Refrigerant Dryer — Up to 50 bar
Up to 50 bar
Flow range
0.42 – 10.25 m³/min
Max pressure
50 bar
Pressure dew point
Constant
Refrigerant
R-513A (ozone-friendly)
Models
6 variants
Reliable refrigerant drying at operating pressures up to 50 bar — designed specifically for high-pressure compressed air systems
Constant pressure dew point and minimal pressure drop maintained across the full operating range
Low energy consumption and ozone-friendly R-513A refrigerant — exemplary sustainability
Six variants from DH 4-2 (0.42 m³/min) to DH 100-2 (10.25 m³/min) covering a wide range of high-pressure applications
Suitable for pharmaceutical, food, chemical, automotive and general high-pressure industrial use
Enquire →

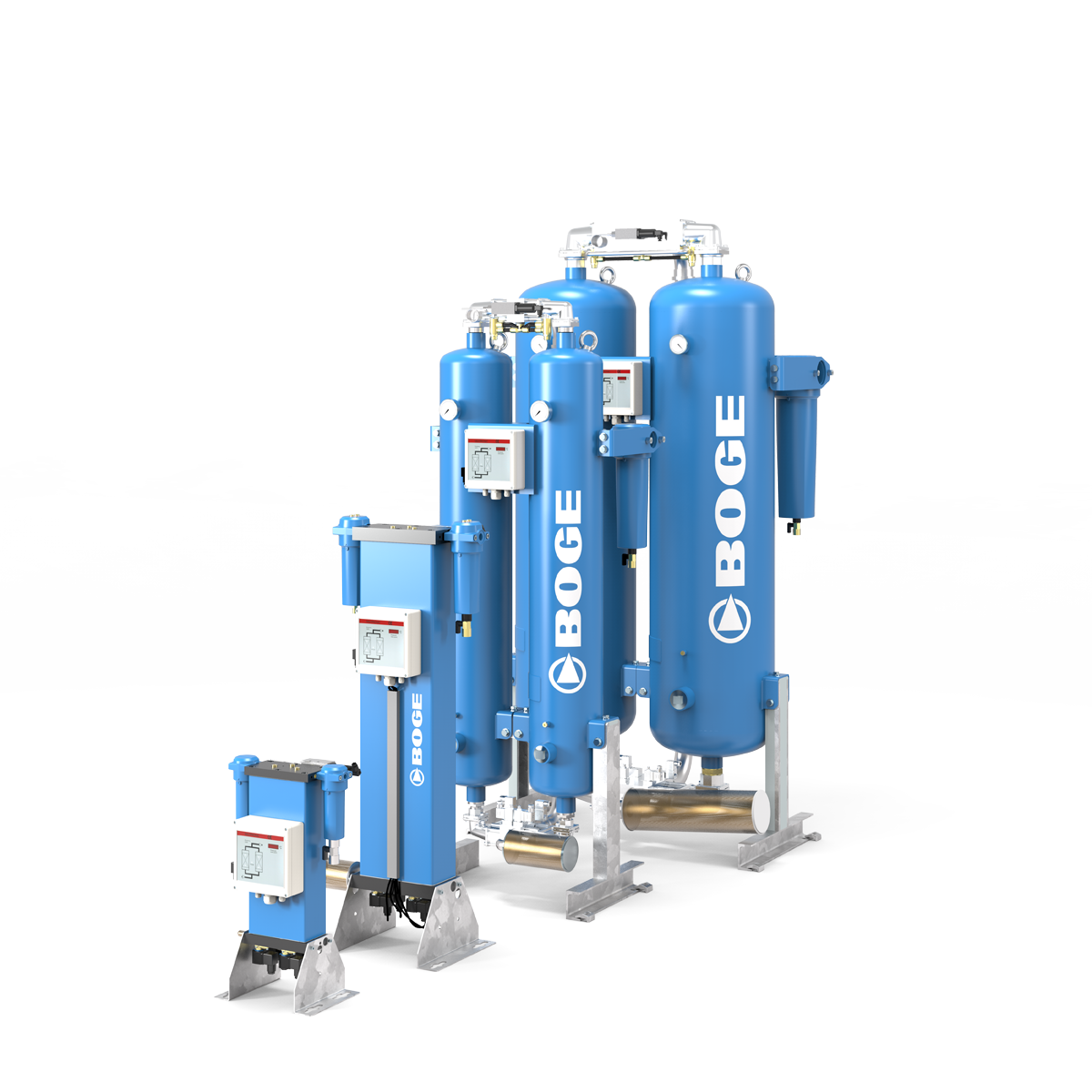

BOGE DAZ-2 Series
Product image

Cold-Regenerated Adsorption Dryer
DAZ-2 Series
Adsorption — Standard
Dew point −40°C (−70°C opt.)
Flow range
0.13 – 101 m³/min
Max pressure
16 bar
Dew point
−40°C (−70°C opt.)
Regeneration
Cold (no external energy)
Cold-regenerating — desiccant regenerated using already-dried air with no external energy input
Pre- and after-filters built in as standard
Dew point control reduces regeneration air consumption and saves energy
Intuitive display with savings function — energy-efficient microprocessor control
Enquire →

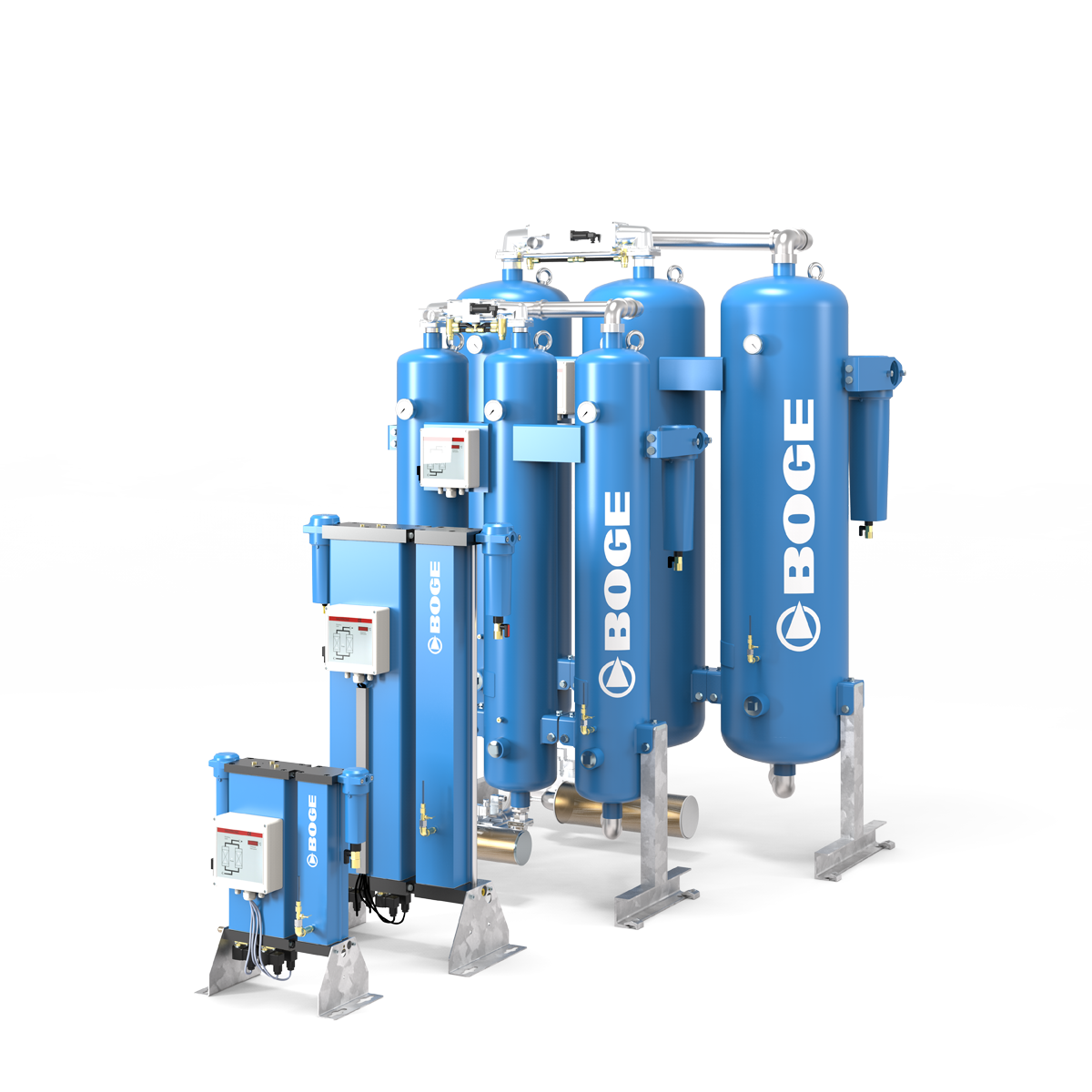

BOGE DACZ-2 Series
Product image

Adsorption + Activated Carbon — All-in-One
DACZ-2 Series
Adsorption dryer + DCZ-2 in one unit
Ultra-low residual oil
Flow range
0.13 – 15.67 m³/min
Max pressure
16 bar
Dew point
−40°C (−70°C opt.)
Residual oil
0.003 mg/m³
Combines DAZ-2 adsorption drying with DCZ-2 activated carbon adsorption in a single compact housing
Microfilters at inlet and outlet as standard — highest compressed air purity in one unit
Residual oil has no chance — down to 0.003 mg/m³ without additional downstream equipment
Ideal for food, pharmaceutical, chemical and frost-sensitive applications
Enquire →

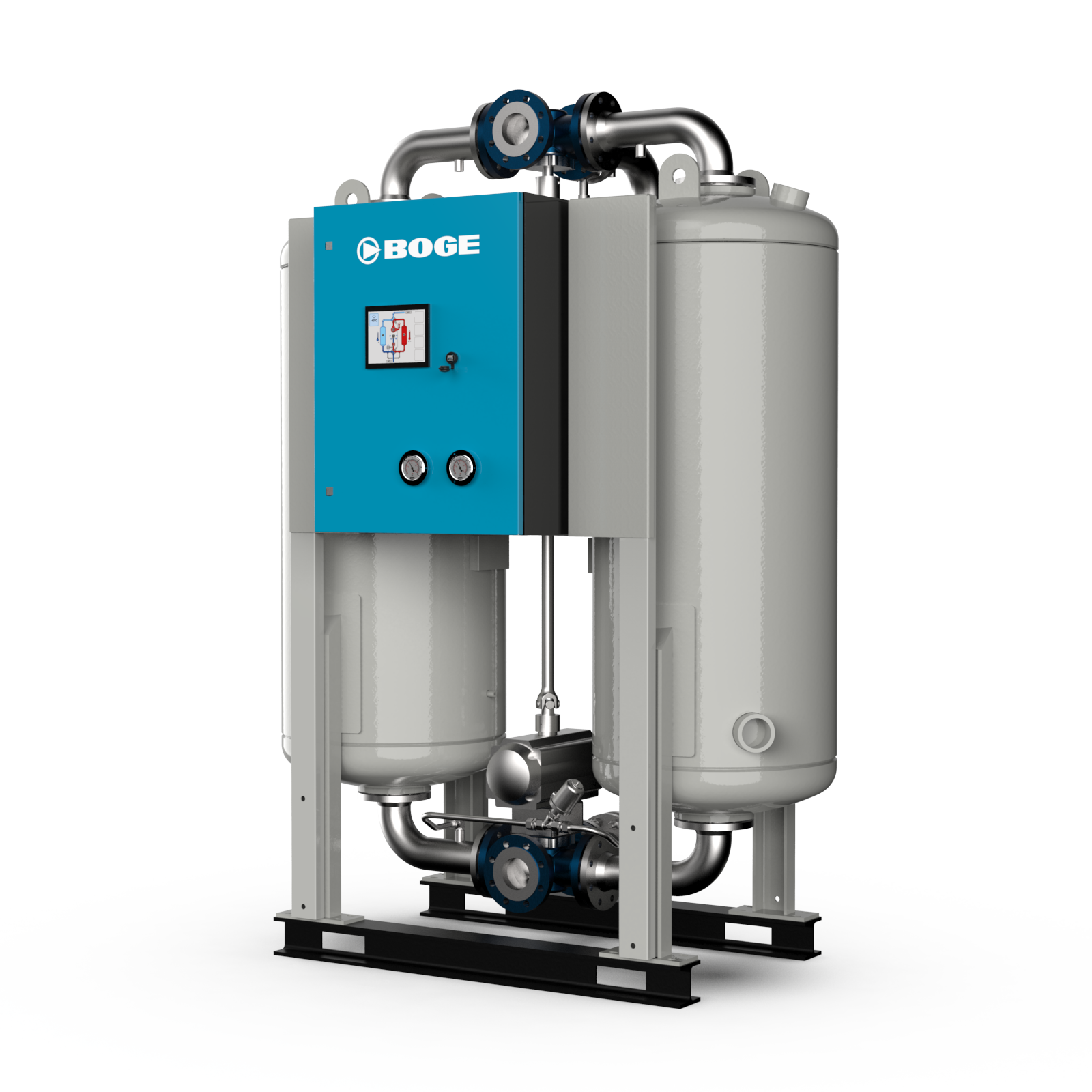

BOGE DAV-2 Series
Product image

Externally Heated Adsorption — High Volume
DAV-2 Series
Heat-regenerated — large installations
Up to 25% energy saving
Flow range
7.5 – 121.7 m³/min
Max pressure
11 bar
Dew point
Down to −70°C
Control
7" touchscreen PLC
Externally heated with vacuum cooling — up to 25% less energy than conventional systems
No purge air loss thanks to variable cycle — maximum energy savings at high volume flows
Intelligent 7-inch touchscreen PLC controller with IoT connectivity, Modbus and Profibus interfaces
Thermally insulated — less heat loss, greater operational safety across the full capacity range
Enquire →

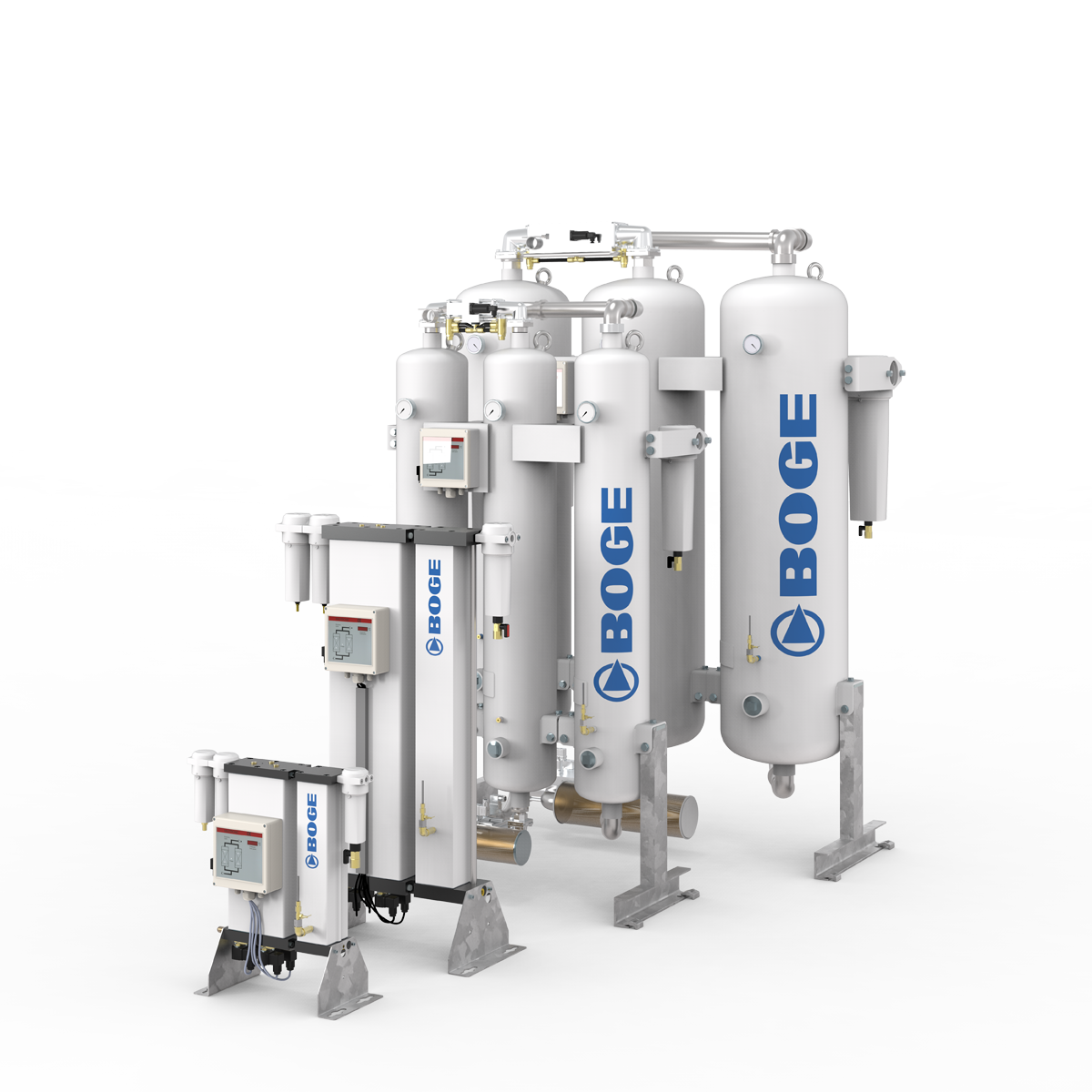

BOGE DASZ-P-2 Series
Product image

Breathing Air Adsorption Dryer
DASZ-P-2 Series
Breathing air — 7-stage purification
European Pharmacopoeia approved
Flow range
0.22 – 22.85 m³/min
Max pressure
16 bar
Purification stages
7 validated
Variants
16
Seven validated purification stages — all national and international breathing air limits significantly undershot
Approved according to European Pharmacopoeia — suitable for medical and industrial breathing air applications
Ultra-compact Plug & Play units — electronically controlled, highly efficient and economical
Long service life of filter elements and desiccants — reduced operating costs
Enquire →

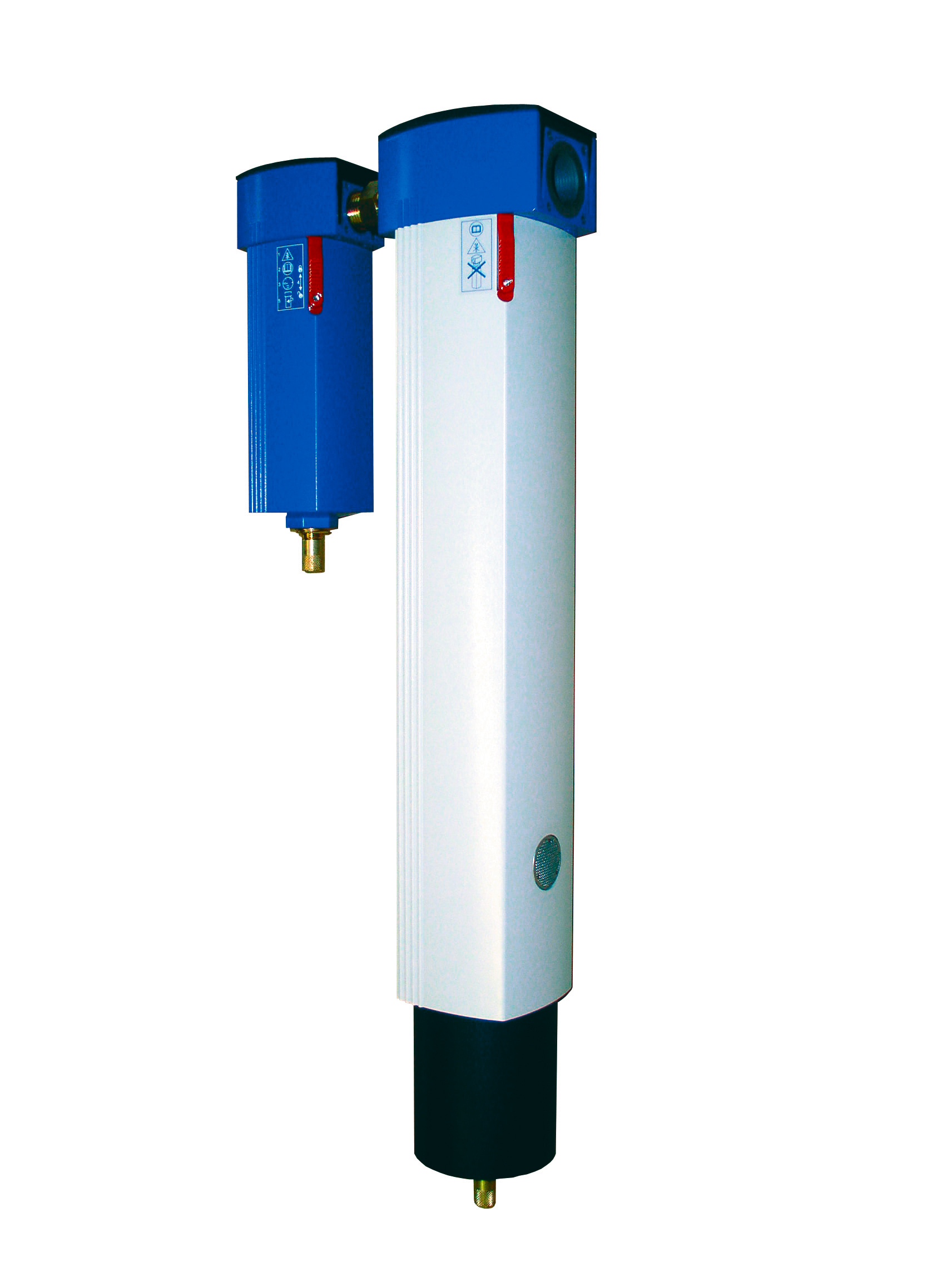

BOGE DM..V Series
Product image

Membrane Dryer — No Electricity Required
DM..V Series
Membrane drying — point-of-use
Zero power consumption
Flow range
0.75 – 2.73 m³/min
Operating pressure
7 – 15 bar
Dew point reduction
20 – 55 Kelvin
Electricity
None required
Selective membrane permeation lowers dew point by 20–55 K — no electricity, no moving parts
Integrated water separator and compressed air filter — complete point-of-use drying in one compact unit
No installation space required — ideally positioned between compressor and receiver or at point of use
Minimal setup costs — quickly installed and reliable for years without maintenance
Enquire →

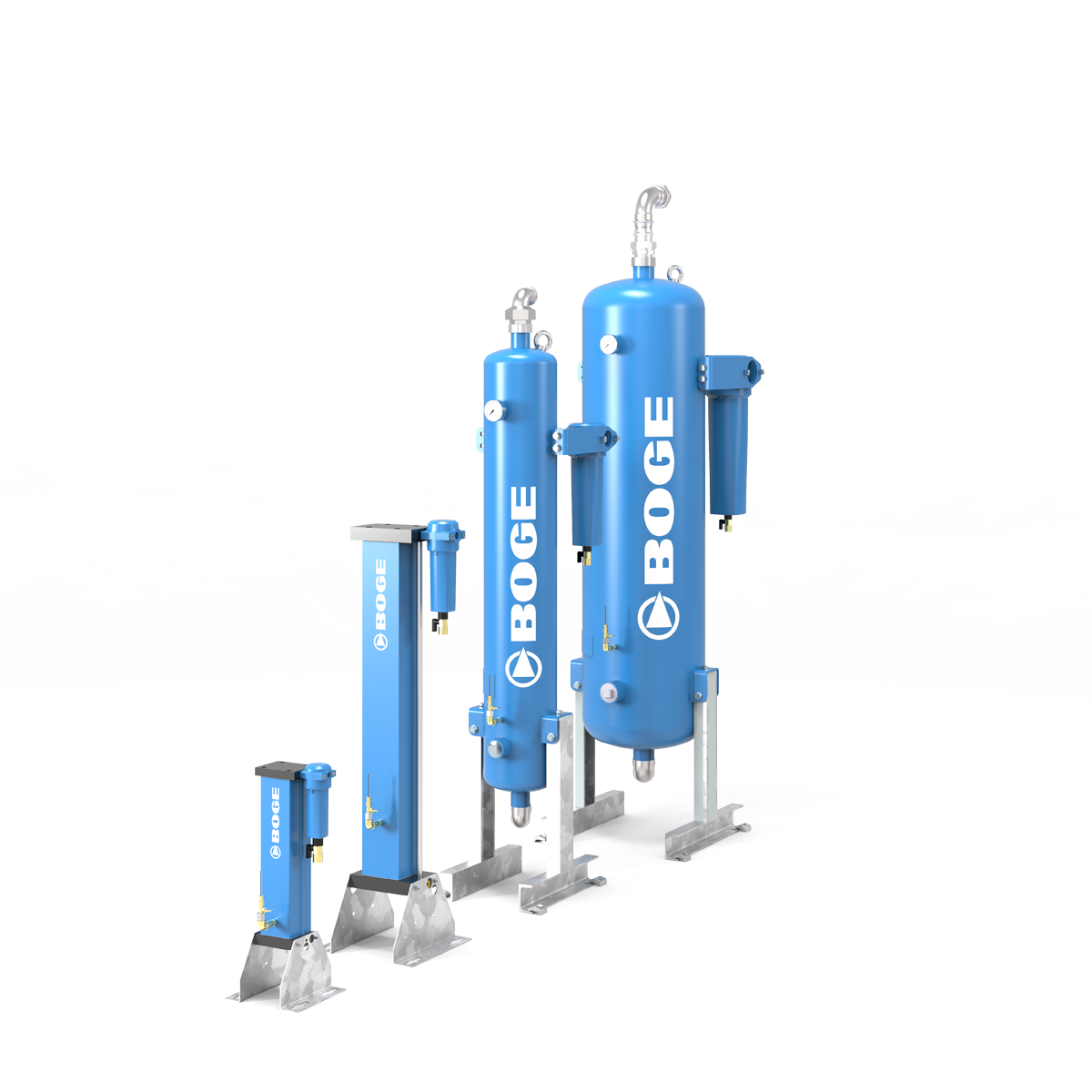

BOGE DCZ-2 Series
Product image

Activated Carbon Adsorber
DCZ-2 Series
Post-dryer oil & odour removal
0.003 mg/m³ residual oil
Flow range
0.13 – 15.67 m³/min
Max pressure
15 bar
Residual oil
0.003 mg/m³
Connection
Direct to adsorber
Removes remaining oil aerosols, oil vapours and odours from pre-dried compressed air
High-quality activated carbon achieves residual oil content down to 0.003 mg/m³
Direct connection to adsorbers — Plug & Play, compact and easy to maintain
For painting/coating, pharmaceutical, food and sensitive production areas
Enquire →
Selection Guide

Which dryer for
which dew point?

The required pressure dew point is the primary selection criterion for a compressed air dryer. Lower dew points require more energy-intensive technology. Contact Tranco Tech for a recommendation matched to your application, flow rate and pressure.

Note: DS Series refrigerant dryers (standard) are not stocked by Tranco Tech.

Pressure dew point achievable
DT Series
+3°C
DH-2 Series
+3°C
DM..V Series
−20°C typ.
DAZ-2 Series
−40°C
DACZ-2 Series
−40°C
DASZ-P-2
−55°C typ.
DAV-2 Series
−70°C
DAZ-2 opt.
−70°C
Quick Reference

Choose the right dryer
for your application

This guide summarises the key characteristics of each series. Contact Tranco Tech for a full recommendation based on your flow rate, operating pressure and required dew point.

Series Technology Max flow Max pressure Dew point Best for
DT Series Refrigerant (VSD) 150 m³/min 16 bar +3°C General industrial, energy-saving priority
DH-2 Series Refrigerant 10.25 m³/min 50 bar +3°C High-pressure systems, cylinders, breathing air pre-drying
DAZ-2 Series Adsorption (cold-regen) 101 m³/min 16 bar −40°C / −70°C Process air, beverage, food, pharmaceutical, chemical
DACZ-2 Series Adsorption + activated carbon 15.67 m³/min 16 bar −40°C / −70°C Highest purity — drying & oil removal in one unit
DAV-2 Series Adsorption (externally heated) 121.7 m³/min 11 bar −70°C Large industrial — pharmaceutical, automotive, electronics
DASZ-P-2 Series Adsorption (7-stage) 22.85 m³/min 16 bar −55°C typ. Medical & industrial breathing air, respiratory protection
DM..V Series Membrane 2.73 m³/min 15 bar −20°C typ. Point-of-use, remote locations, no power supply available
DCZ-2 Series Activated carbon adsorber 15.67 m³/min 15 bar N/A — oil removal Downstream of adsorption dryer for highest oil purity
Typical Applications

Dry compressed air is critical
across every sector

💊Pharmaceutical
🍃Food & Beverage
🏥Healthcare
🔬Electronics
🚗Automotive
🧪Chemical
🏭Manufacturing
⚡Energy

Find the ideal dryer
for your system

Our team will advise you personally and recommend the right dryer series for your required dew point, operating pressure and flow rate — matched to your specific process and industry.
