More pressure, fewer worries

Compressed Air
Receiver Tanks

BOGE compressed air receivers fulfil three critical roles in any compressed air system — storage, condensate separation and pulsation damping. Robustly built, certified to EU standards and available from 50 to 10,000 litres.

50 – 10,000 litres 11 bar • 16 bar • 41 bar EU Directive 2014/29/EU AD2000 Certified Vertical & Horizontal Oxygen Receivers

At a Glance

Three critical roles —
one robust vessel

Compressed air receivers fulfil a variety of important tasks. Material and workmanship are of the highest quality at BOGE. All tanks are manufactured in accordance with EC Directive 2014/29/EU or 2014/68/EU and AD2000.

Stable pressure conditions — receivers buffer consumption peaks and maintain stable network pressure, preventing pressure fluctuations from affecting production processes

Condensate separation — the receiver acts as a primary separation vessel, allowing condensate to settle out of the compressed air before it enters the treatment train

Pulsation damping — smooths out pressure pulsations from reciprocating compressors, protecting downstream equipment and improving air quality

Energy optimisation — adequate receiver capacity reduces compressor cycling frequency, extending equipment life and reducing energy consumption

Robust, durable and flexible — available vertical, horizontal and galvanised for three pressure ratings, covering every installation requirement from small workshops to large industrial plants

Safe all around — certified to EU Pressure Equipment Directive 2014/68/EU and AD2000, with pressure relief valves and inspection connections as standard

Enquire →

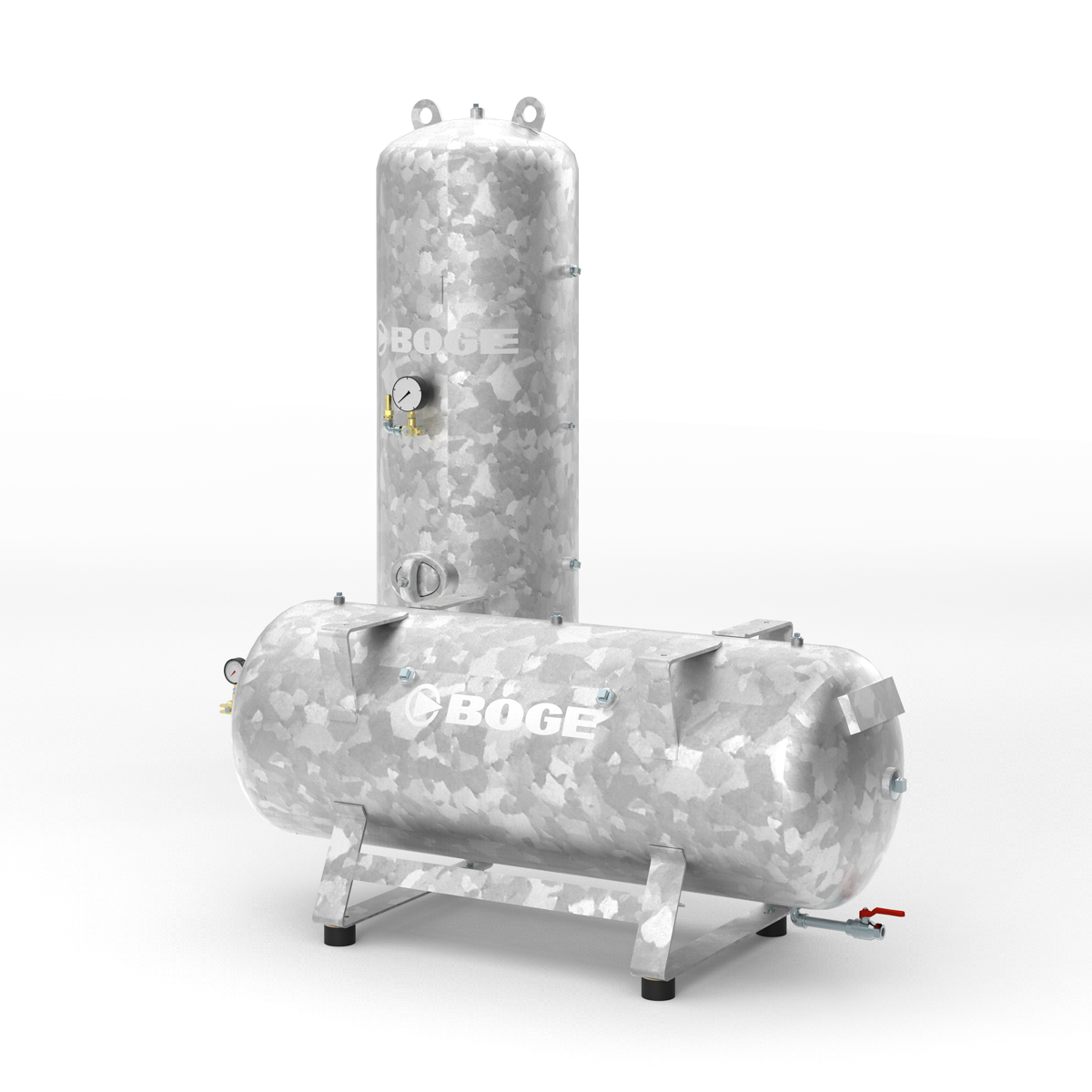

BOGE Compressed Air Receiver
Product image

Key Specifications

Capacity range

50 – 10,000 litres

Pressure ratings

11 bar • 16 bar • 41 bar

Orientation

Vertical & horizontal

Surface finish

Standard & galvanised

Certification

EU 2014/29/EU • 2014/68/EU • AD2000

Design Highlights

Built to last — engineered for reliability

Pressure certified

All BOGE receivers are manufactured and pressure-tested to EU Directive 2014/29/EU or 2014/68/EU and the AD2000 pressure vessel standard, ensuring full regulatory compliance for industrial use.

Wide capacity range

From 50-litre compact receivers for small workshop installations to 10,000-litre large industrial vessels — the BOGE receiver range covers every application without compromise.

Three pressure classes

Rated for 11 bar, 16 bar and 41 bar operating pressure, with the 41 bar range specifically designed for high-pressure compressed air systems and cylinder-filling applications.

Capacity Range Overview

Capacity	Pressure options	Orientation
50 – 160 litres	11 bar, 16 bar, 41 bar	Vertical & horizontal
250 – 500 litres	11 bar, 16 bar, 41 bar	Vertical & horizontal
750 – 1,000 litres	11 bar, 16 bar, 41 bar	Vertical & horizontal
1,500 – 3,000 litres	11 bar, 16 bar	Vertical & horizontal
4,000 – 10,000 litres	11 bar, 16 bar	Vertical & horizontal, with flange option

Dedicated Oxygen Storage

Oxygen Receivers —
optimal storage & safety

BOGE oxygen receivers are purpose-built for use with INMATEC PO Series on-site oxygen generators. All vessels are designed in accordance with the Pressure Equipment Directive (PED) for a minimum of 2 million load cycles and are considered fatigue-resistant — ensuring long, safe service life in continuous oxygen generation systems.

PED-certified for ≥2 million load cycles — designed for the cyclic pressure demands of continuous on-site oxygen generation systems and rated as fatigue-resistant

Integrated sinter filters (from size PO 220 onward) — prevent transfer of Carbon Molecular Sieve (CMS) particles into the oxygen stream, extending system service life and ensuring product quality

Flow-optimised design (from size PO 220 onward) — high-quality sieve trays minimise pressure drop and maximise oxygen delivery efficiency

Complete with fittings — supplied ready for connection to the oxygen generator system, minimising installation time and complexity

Supports independence from bulk gas suppliers — combined with an INMATEC PO Series generator, eliminates cylinder deliveries, storage risk and supply dependency entirely

11 models from 90 to 5,000 litres — scalable storage capacity matched to generator output and application demand

Enquire →

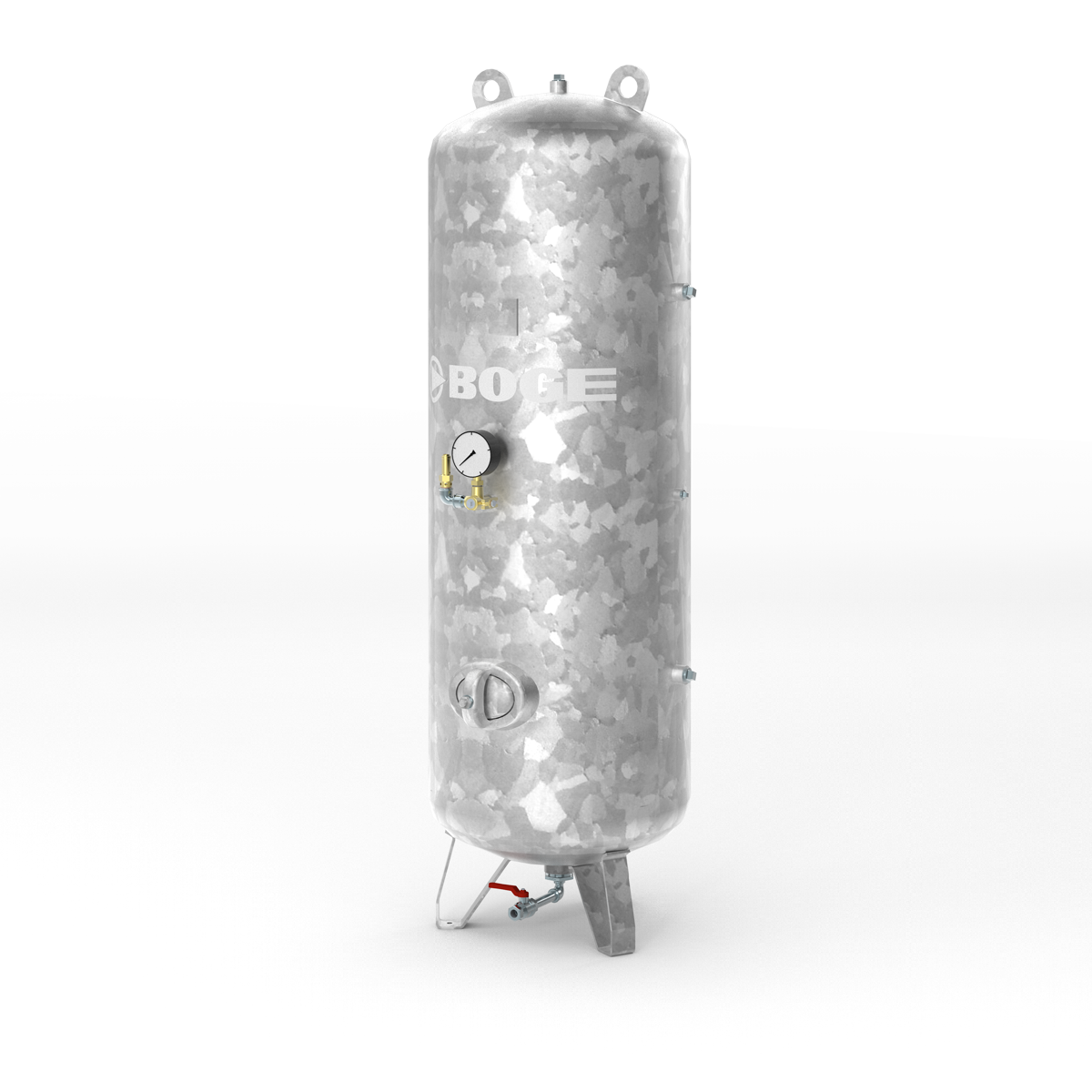

BOGE Oxygen Receiver
Product image

Key Specifications

Capacity range

90 – 5,000 litres

Operating pressure

11 bar

Load cycle rating

≥ 2 million cycles (PED)

Sinter filters

Integrated (from PO 220)

Compatible with

INMATEC PO Series generators

Models available

Oxygen Receiver Models

Capacity	Pressure	Weight (kg)
90 litres	11 bar	41
150 litres	11 bar	63
250 litres	11 bar	89
500 litres	11 bar	160
750 litres	11 bar	220
1,000 litres	11 bar	280
1,500 litres	11 bar	440
2,000 litres	11 bar	490
3,000 litres	11 bar	740
4,000 litres	11 bar	1,020
5,000 litres	11 bar	969
