Home/ Products/ Air Treatment & Accessories/ Filters & Cyclone Separators
Specialisation taken to the extreme

Compressed Air Filters
& Cyclone Separators

The complete BOGE filter range covers all ISO 8573-1 purity classes — from bulk liquid removal to germ-free sterile air. Standard range up to 16 bar and high-pressure range up to 45 bar.

Standard Range — up to 16 bar High-Pressure Range — up to 45 bar FDA Title 21 CFR 10-Year Housing Warranty
Complete Filter Range

Standard & high-pressure —
every purity class covered

Industrial applications vary widely — and so do the required quality classes and purity levels. BOGE offers a filter for every application, with consistently low differential pressure, certified efficiency and 10-year housing warranty across the entire range.

BOGE Pre-Filter
Product image

Standard Range
Pre-Filter
F..-2 P Series
FDA Title 21 CFR
Particle size
< 1 µm
Residual oil
0.5 mg/m³
Efficiency
99.925%
Max pressure
16 bar
Element life
12 months
Removes liquid and solid particles from compressed air or gaseous nitrogen
Innovative element fleeces guarantee consistently low differential pressure over full element life
Error-free assembly — housing closure prevents bypass flow between contaminated and clean sides
Available in flange version — simple, space-saving installation
Enquire →

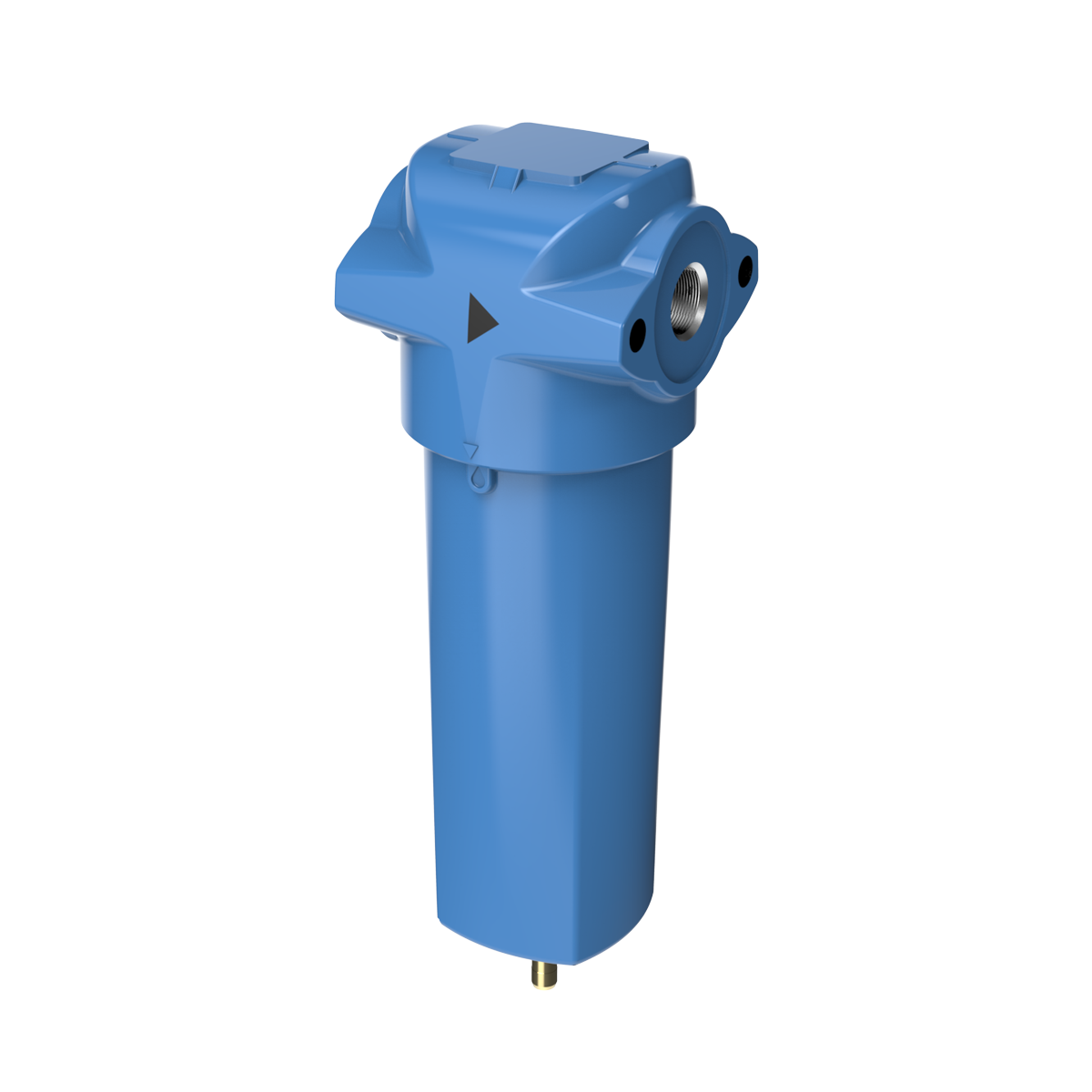

BOGE Microfilter
Product image

Standard Range
Microfilter
F..FM Series
FDA Title 21 CFR
Particle size
< 0.01 µm
Residual oil
0.01 mg/m³
Efficiency
99.9999%
Max pressure
16 bar
Flow range
0.60 – 520 m³/min
Deep-pleated element increases filter area 4.5× versus conventional elements
Consistently low differential pressure — high dirt-holding capacity at all flow rates
Housing and element optimised for lowest possible flow resistance
Wide size range: G¼ threaded to DN 300 flange connections
Enquire →

BOGE Activated Carbon Filter
Product image

Standard Range
Activated Carbon Filter
F..-2 A Series
FDA Title 21 CFR
Residual oil
0.003 mg/m³
Element change
50 – 650 hrs
Max pressure
16 bar
Housing warranty
10 years
Removes oil vapours, hydrocarbons and odours from compressed air
Combination of up to three filters without cross-sectional restriction — more compact installation
Replacement elements are downward compatible — fits current and previous series housings
Essential for food, pharmaceutical and breathing air applications
Enquire →

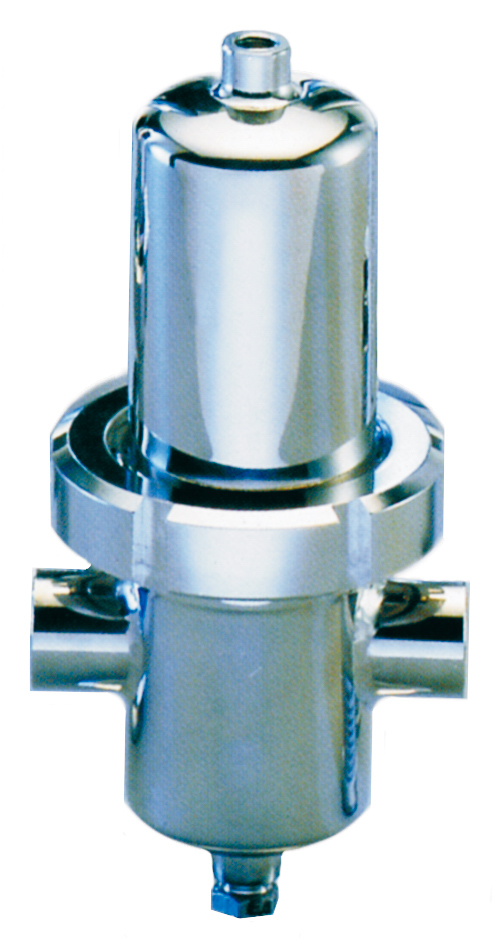

BOGE Sterile Filter
Product image

Standard Range — Highest Purity
Sterile Filter
ST..-2 Series
Air quality
100% Germ-free
Max pressure
16 bar
Flow range
1.50 – 32.50 m³/min
End caps
Stainless steel
Wound depth filter with inner and outer support cage and stainless steel end caps
Binder-free 3D depth filter medium with 95% void volume — high dirt-holding at low differential pressure
Germ-free operation ensured even under extreme conditions
For pharmaceutical, food & beverage, cosmetics and electronics industries
Enquire →

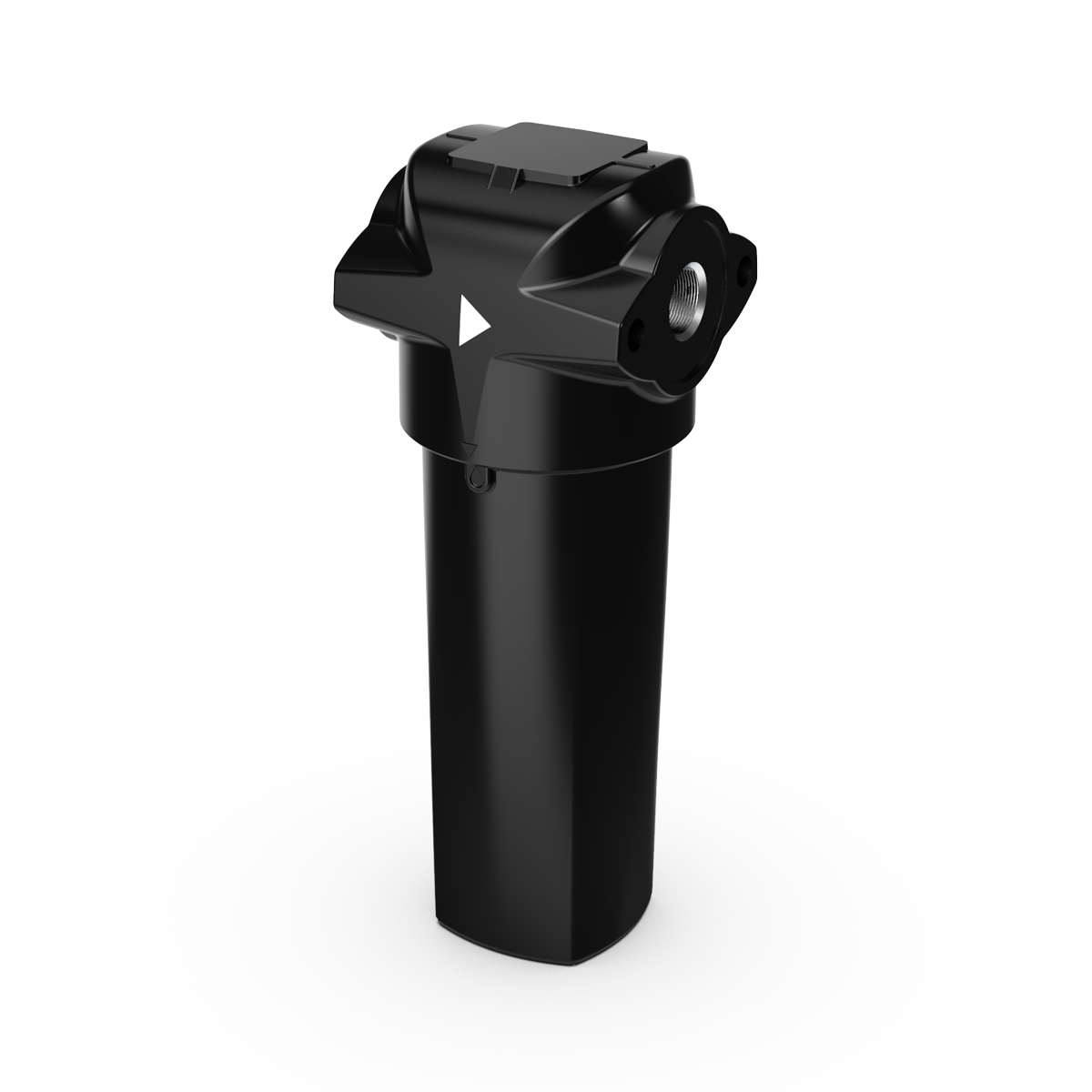

BOGE Cyclone Separator
Product image

Standard Range — Bulk Separation
Cyclone Separator
Z-2 Series
Food suitable
Separation
≥ 92% (up to 99%)
Pressure loss
Very low
Maintenance
Maintenance-free
Max pressure
16 bar
Housing warranty
10 years
Inertia-principle centrifugal separation of large liquid volumes — droplets and wall flow
Optimised flow guidance for minimal pressure loss with efficiencies up to 99%
Designed for inter- and aftercoolers, receivers and to protect downstream coalescing filters
Available G½ to G 3 connections, 0.60 to 48 m³/min flow range
Enquire →
High-pressure range: All three BOGE high-pressure filter types — pre-filter (V), microfilter (FP) and activated carbon filter (A) — share the same high-quality aluminium housing with threaded connection and are rated for pressures up to 45 bar. Deep-pleated element fleeces increase filter area 4.5× versus conventional elements, delivering high dirt-holding capacity at consistently low differential pressure.

BOGE High-Pressure Pre-Filter
Product image

High-Pressure Range — up to 45 bar
High-Pressure Pre-Filter
V..-45 Series
Particle size
< 3 µm
Efficiency
99.99%
Max pressure
45 bar
Flow range
1.25 – 29.17 m³/min
Connections
G¼ – G 2
Reliable removal of solid particles to 3 µm from high-pressure compressed air
High-quality aluminium housing engineered for lowest possible flow resistance at 45 bar
Robust and durable — suited for continuous high-pressure industrial operation
Versatile variants from V 12-45 to V 435-45 covering the full capacity range
Enquire →

BOGE High-Pressure Microfilter
Product image

High-Pressure Range — up to 45 bar
High-Pressure Microfilter
FP..-45 Series
Particle size
< 0.01 µm
Residual oil
0.01 mg/m³
Efficiency
99.9999%
Max pressure
45 bar
Connections
G¼ – G 2
Fine particle and oil aerosol removal to 0.01 µm for high-pressure applications
Deep-pleated element 4.5× filter area versus conventional — high capacity, low pressure drop
Aluminium housing with optimised flow path for minimal pressure resistance
Models FP 12-45 to FP 435-45 covering 1.25 to 29.17 m³/min
Enquire →

BOGE High-Pressure Activated Carbon Filter
Product image

High-Pressure Range — up to 45 bar
High-Pressure Activated Carbon Filter
A..-45 Series
Residual oil
0.003 mg/m³
Element change
50 – 650 hrs
Max pressure
45 bar
Connections
G¼ – G 2
Reliable adsorption of residual oil contents to 0.003 mg/m³ from high-pressure air
Same robust aluminium housing as HP pre-filter and microfilter — consistent installation across all three types
Models A 12-45 to A 435-45 covering 1.25 to 29.17 m³/min at 45 bar
Essential downstream of high-pressure compressors serving breathing air and cylinder filling
Enquire →
Across the Entire BOGE Filter Range

Four qualities that define
every BOGE filter

Lowest differential pressure
Innovative element fleeces and deep-pleated design minimise flow resistance across the full service life, directly reducing energy consumption and operating costs.
Certified efficiency
All BOGE filters are tested and certified to stated efficiencies — from 99.925% on pre-filters to 99.9999% on microfilters. Consistent, verifiable performance for compliance and quality management.
Suitable for food & pharma
Standard range filters carry FDA Title 21 CFR certification, making them suitable for direct use in food, beverage, pharmaceutical and cosmetics production environments.
Cleverly combined
Filters can be combined in series using wall brackets or coupling sets with no cross-sectional restriction. Replacement elements are downward compatible across series for easy maintenance.
Selection Guide

Which filter for
which purity class?

ISO 8573-1 defines the quality class for compressed air. The table shows which BOGE filters achieve the stated residual oil content per class.

Contact Tranco Tech for a full treatment train recommendation matching your required purity class, operating pressure and flow rate.

ISO 8573-1 Class Max oil content BOGE filter
Class 1 0.01 mg/m³ Microfilter (FM)
Class 2 0.1 mg/m³ Microfilter (FM)
Class 3 1.0 mg/m³ Pre-Filter (P)
Class 4 5.0 mg/m³ Pre-Filter (P)
Class X — oil vapour ≤ 0.003 mg/m³ Activated Carbon (A)
Class X — sterile Germ-free Sterile Filter (ST)
High-pressure (≤ 45 bar) All classes HP Range (V / FP / A)
Typical Applications

No more, no less —
the purity your industry requires

💊Pharmaceutical
🍃Food & Beverage
🏥Healthcare
🔬Electronics
🧵Textile
🏭Manufacturing
🔩Metal & Engineering
⚡Energy

Find the ideal filter
for your system

Selecting the right treatment components is crucial for efficient and economical compressed air production. Our team will advise you personally and recommend the right filter configuration for your application and required purity class.
