Home/Products/Screw Compressors/ecoline Series
Reliable performance, every day

Screw Compressor
ecoline Series

Automatic unloaded start — hermetically closed intake at standstill
Fully vibration-decoupled machine set — long productive machine life
Removable doors — easy, unrestricted access to all components
IE3 high-efficiency motor with easily adjustable belt tension
Automatic base control microprocessor — optimum economy at all times
Lubrication
Oil-lubricated
Drive
Belt drive
Motor
IE3 standard
Control
Auto base control

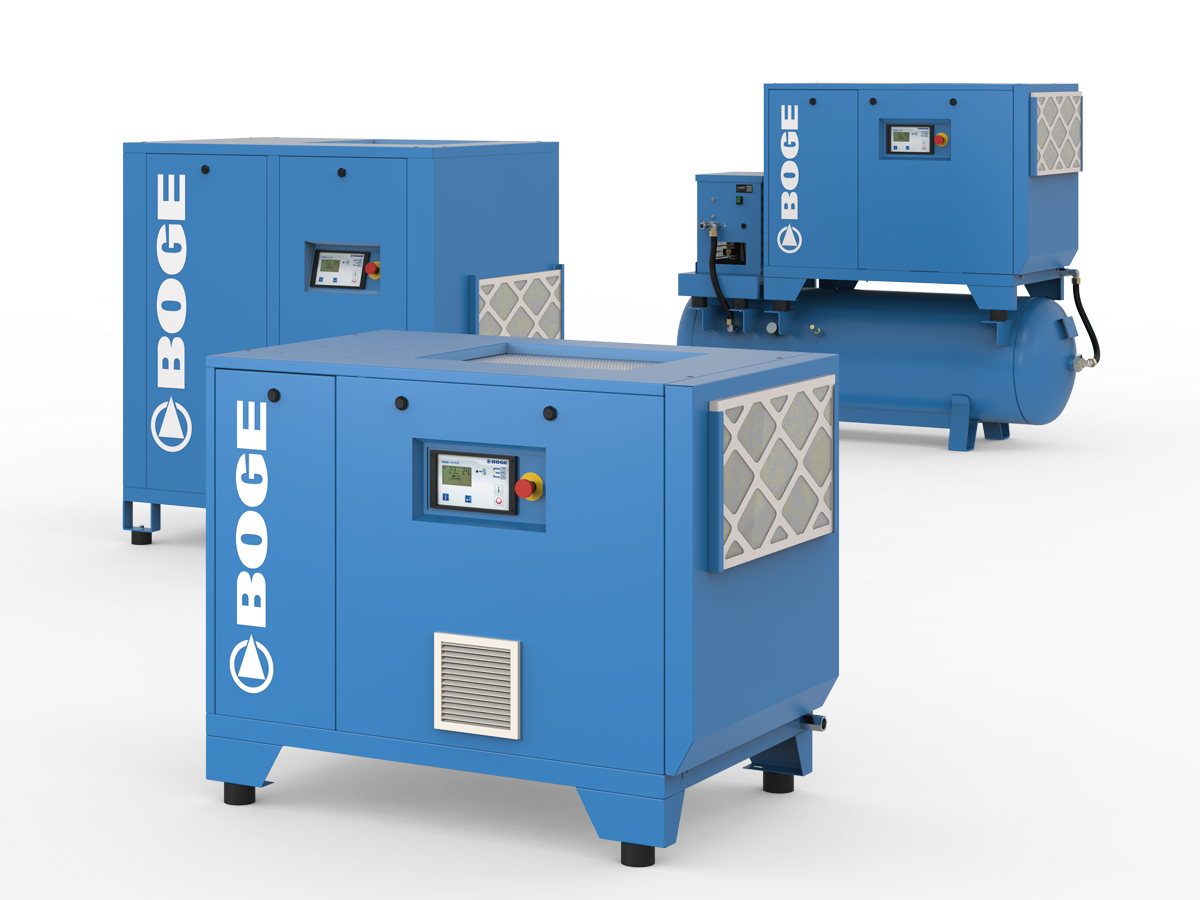

BOGE ecoline E 4 – E 30 oil-injected screw compressor range — available in Sri Lanka from Tranco Tech
01Specifications
02Features
03Information Material
At a Glance

Built for reliability —
the advantages of the BOGE ecoline

The BOGE ecoline is a compact, robust screw compressor designed for dependable continuous operation. From the automatically unloaded start to the easy-access maintenance design, every aspect of the ecoline reflects BOGE's commitment to long machine life and low operating costs — making it an ideal choice for businesses that need reliable compressed air without complexity.

An automatic intake control — hermetically closed at standstill — guarantees an always fully unloaded start. The machine set, fully decoupled from a vibration-technology perspective, which largely suppresses vibrations at the outset, also lays the foundation for a long, productive machine life.
Removable doors and good accessibility to all components make any maintenance child's play. This is further simplified by the well-placed, highly efficient oil-separator cartridge and high-performance oil filter.
Everything was done purely constructively to keep the compressed air in top quality: a highly effective aftercooler keeps the compressed air temperature consistently low, and the effective pre-separation in the oil-air combination tank ensures that the residual oil content of the compressed air remains at the lowest level in every operating phase. The cooling air guided optimally through the soundproof hood and an intake air filter mat for the cooling air inlet also contribute to “compressed air in top form.”
To ensure the most economical operation, the (manually) easily adjustable belt tension in combination with highly efficient IE3 drive motors, and the standard automatic base control microprocessor control system, enable a choice of operating mode that ensures optimum economy at all times.

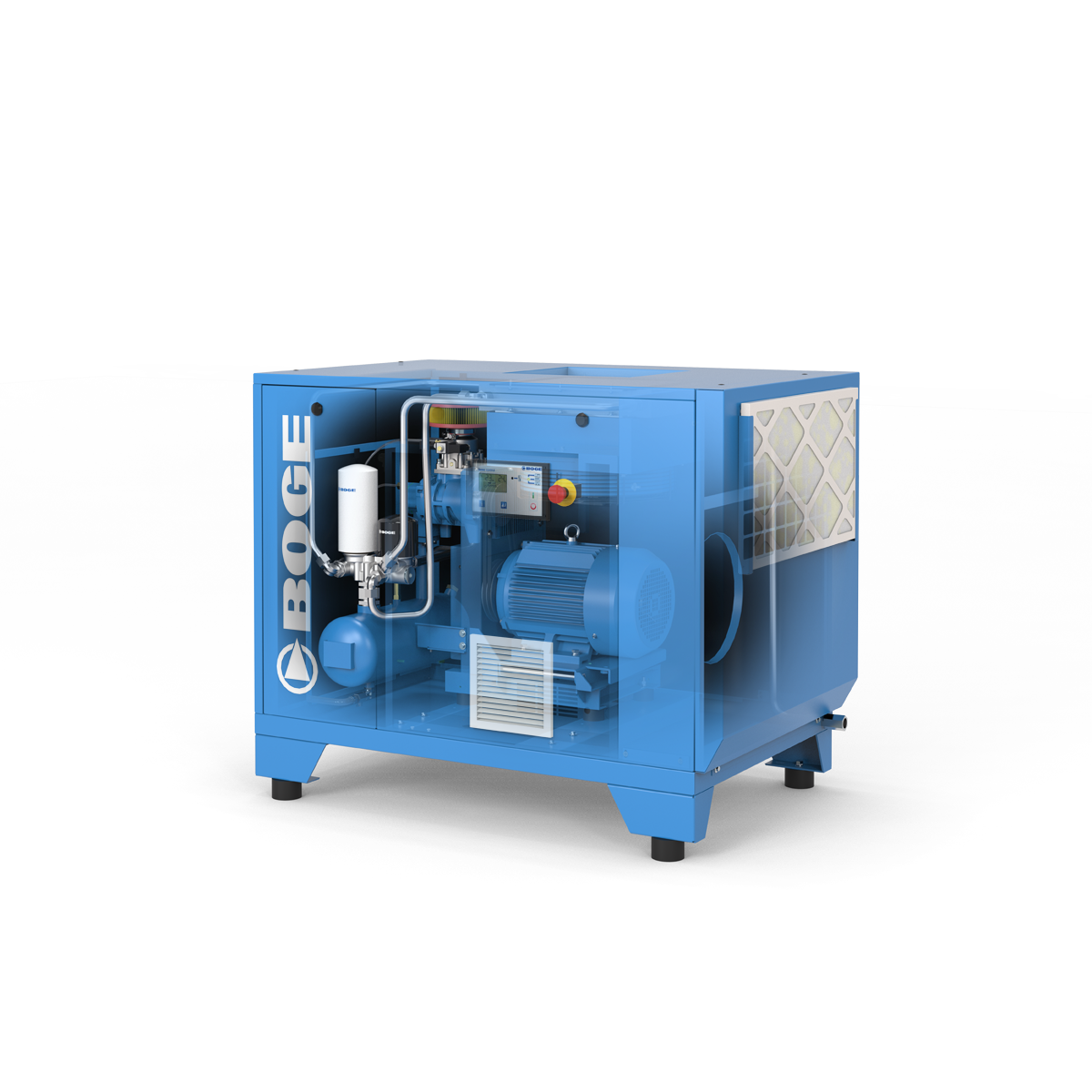

BOGE ecoline E 7 F oil-injected screw compressor
Key Specifications
Lubrication
Oil-lubricated
Drive type
Belt drive
Motor class
IE3 (standard)
Control
Auto base control
Start method
Fully unloaded
Contact Tranco Tech for full technical specifications and model selection guidance.
Design Highlights

Engineered for
long life and low running costs

Automatic Unloaded Start
The hermetically closed automatic intake control ensures the compressor always starts fully unloaded, eliminating start-up stress on the motor and drive components and extending operational life.
Vibration Decoupling
The complete machine set is fully decoupled from a vibration-engineering perspective. Vibrations are suppressed at source, protecting the structure, pipework and surrounding equipment while contributing to quiet operation.
Easy-Access Maintenance
Removable doors give unrestricted access to all service components. The well-positioned oil-separator cartridge and high-performance oil filter make routine maintenance fast and straightforward for any qualified technician.
Effective Aftercooling
A highly effective aftercooler maintains consistently low compressed air outlet temperatures. Combined with effective pre-separation in the oil-air combination tank, residual oil content is kept at the lowest possible level in all operating phases.
IE3 Motor & Belt Drive
High-efficiency IE3 drive motors with easily adjustable belt tension keep energy consumption low. The belt drive provides a straightforward, reliable transmission with minimal maintenance requirements.
Auto Base Control
The standard automatic base control microprocessor system selects the optimum operating mode for current conditions at all times — ensuring maximum economy without requiring manual intervention from the operator.
Configuration Options

Configure your ecoline
to your exact requirement

The ecoline series supports a range of configuration options to match your installation and air quality requirements. Contact Tranco Tech for a tailored recommendation.

Tank-Mounted
Tank-mounted configurations available for compact installations requiring integrated air storage without separate receiver vessels.
Air Treatment
Full downstream treatment options including refrigerant dryers, filters and condensate management to meet your required air quality class per ISO 8573-1.
Spare Parts & Service
Tranco Tech holds a comprehensive spare parts inventory with a minimum 10-year supply assurance for all BOGE compressors, including the ecoline series.
Typical Applications

Reliable performance
across a wide range of industries

The ecoline series is well-suited to any application requiring dependable, economical compressed air with minimal maintenance burden — from small manufacturing facilities to workshops, garages and general industrial use.

🏭Manufacturing
🔩Metal & Engineering
🧵Textile
🍃Food & Beverage
🚗Automotive
🏗Construction
🌿Agriculture
⚡Energy
Information Material

Expert Knowledge & Technical Data

Brochure — ecoline Series
Available on request  ·  PDF
Datasheet — ecoline Series
Available on request  ·  PDF

To request any of the above documents, contact Tranco Tech at info@trancotech.com or call +94 114 348 437.

Also in Our Screw Compressor Range

Find Exactly the Right Solution

C Series
Compact  ·  Up to 22 kW
→
C-2 Series
Enhanced efficiency  ·  Up to 22 kW
→
S-3 Series
Industrial  ·  22–315 kW
→
S-4 Series
High performance  ·  37–160 kW
→

Need Help Choosing the Right Model?

Our engineering team will assess your flow rate requirements, operating pressure, duty cycle and site conditions — and recommend the right ecoline configuration for your application.

Request a Quote → Contact Our Engineers
