Powerful in continuous operation

Screw Compressor
S-3 Series
22 – 315 kW

Maintenance-friendly design — safe, one-sided access

High-efficiency IE3 motor as standard

Internal steel tube piping — leak-protected

Optimised cooling air guidance

Optional frequency control and heat recovery

Lubrication

Oil-lubricated

Cooling

Air- & water-cooled

Max pressure

Up to 13 bar

Max FAD

Up to 42.8 m³/min

BOGE S 61-3 oil-injected screw compressor — available in Sri Lanka from Tranco Tech

01Specifications

02Features

03Information Material

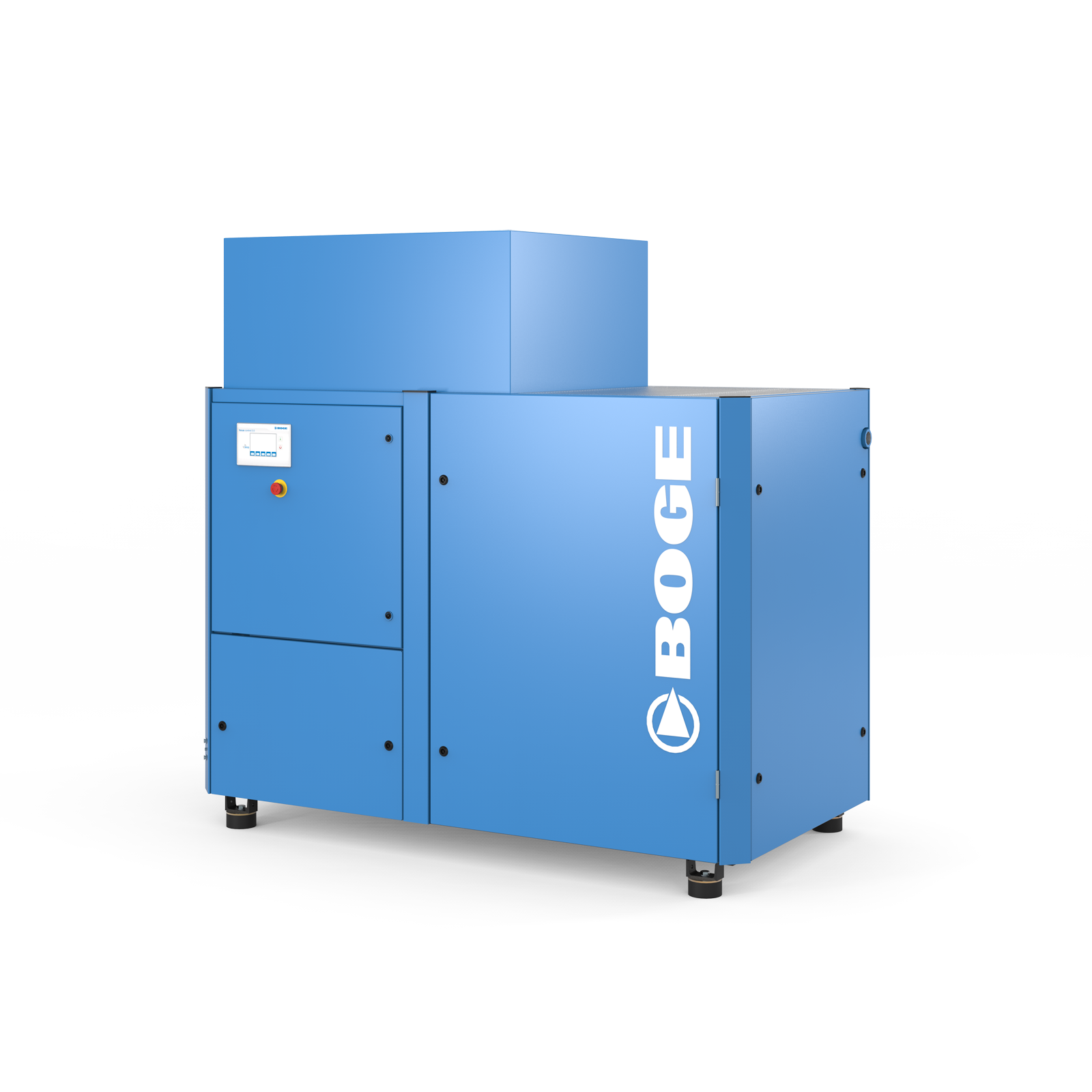

S-3 Series — 22–75 kW

Continuous improvement,
engineered to the last detail

The S-3 compact range shows what can be achieved through continuous refinement: every detail — from precisely controlled cooling air flow to the effective oil separation system with its horizontally arranged tank to the space-saving one-sided access — is optimised for a long machine life and maximum economy. The well-thought-out design guarantees particularly simple, safe maintenance, and for even more efficiency, various options are available, from frequency control to heat recovery.

Simplified maintenance

The clear arrangement of the functional areas allows simplified maintenance access via swivelling and removable doors from one side.

Optimised cooling airflow

Thanks to the defined cooling air guidance, the fan performance can be used 100%. The fact that cooling also works with the unit open proves useful during maintenance.

Protected against leaks

Unlike hose connections, which are still often used today, steel pipes do not need to be replaced regularly and effectively prevent the risk of leaks for years.

Protected against dirt particles

An intake filter with a paper microfilter insert prevents dust and dirt from entering the compressor circuit in the first place. This increases the service life of the compression stage and — thanks to the integrated pre-separation — also the service life of the actual filter element.

Key Figures — 22–75 kW

Power range

22 – 75 kW

FAD range

2.73 – 12.29 m³/min

Cooling

Air & water

Lubrication

Oil-lubricated

S-3 Series — 132–315 kW

Maximum efficiency,
in-house engineering for heavy industry

The powerful upper range of the S-3 series stays true to the design philosophy that defines the whole family: maximum efficiency, highest operational reliability and pronounced maintenance-friendliness are skilfully combined even in the most powerful models. All functional areas are clearly structured, easy and safe to access, and all components are designed for a long service life. For those who require even greater efficiency, options including frequency control and heat recovery are available.

Easy access for maintenance purposes

Experience shows: simplified maintenance access saves time and significantly increases safety. That is why the S-3 series features swivelable and removable doors that can be opened from only one side.

Improved cooling air guidance

The precisely defined cooling airflow is the result of continuous improvements. It enables the fan performance to be used 100%. That the cooling also works when the unit is open proves useful during maintenance and test runs.

Internal piping made of steel pipe

To effectively prevent the risk of leaks, the S-3 series uses durable steel pipes instead of vulnerable hose connections that would require regular replacement.

Intake filter with double benefit

A paper microfilter element in the intake filter prevents dust and dirt from entering the compressor circuit. This not only increases the service life of the compression stage, but — thanks to the integrated pre-separation — also the lifetime of the actual filter element.

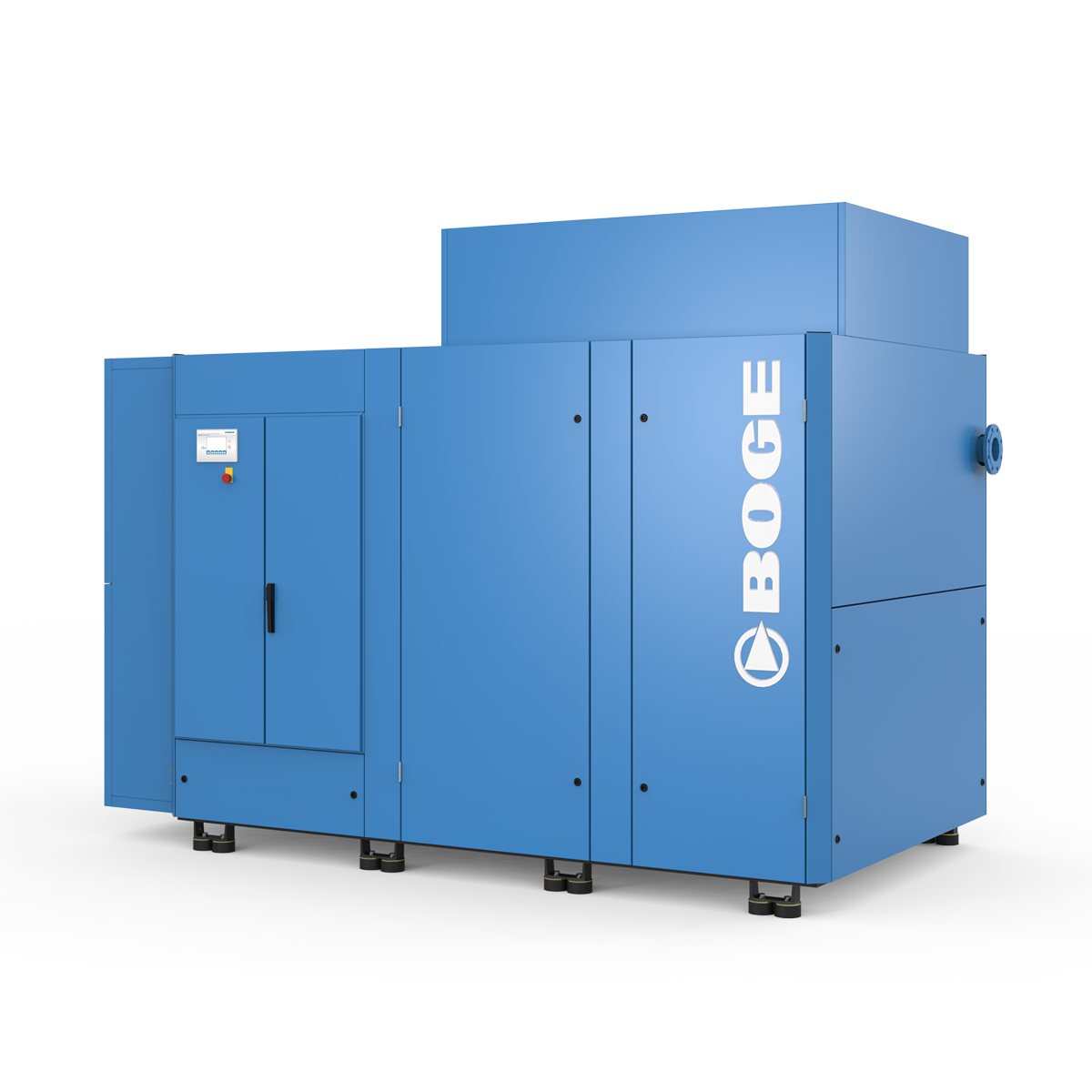

BOGE SL 341-3 (132–315 kW industrial range)

Key Figures — 132–315 kW

Power range

132 – 315 kW

FAD range

16.08 – 42.80 m³/min

Cooling

Air & water

Lubrication

Oil-lubricated

Across the Full S-3 Family

Engineering strengths shared
by every S-3 model

IE3 High-Efficiency Motor

Premium IE3-class motor as standard across the full S-3 range, delivering lower energy consumption and reduced heat generation throughout its operating life.

Maintenance-Friendly Design

Structured access to all service points, with components designed for long life. All routine tasks are straightforward — reducing downtime and total maintenance cost across the machine's life.

Frequency Control Option

Variable speed drive (VSD) variants available across both power ranges. The compressor automatically adjusts output to match real demand, eliminating idle losses and delivering measurable energy savings.

Steel Tube Internal Piping

Rigid steel pipework throughout the machine eliminates the risk of hose degradation and leaks, minimising unplanned downtime and maintaining compressed air system integrity over years of continuous operation.

Heat Recovery Option

A significant proportion of the energy input to compression can be recovered as usable heat. The S-3's heat recovery option allows recovered energy to be used for water heating, space heating or process needs — improving overall plant energy efficiency.

Modular Configuration

The S-3 family supports a wide range of configurations including air-cooled, water-cooled, tank-mounted, frequency-controlled and containerised variants, making it adaptable to virtually any industrial installation requirement.

Available Options

Configure your S-3
to your exact requirement

Every S-3 can be configured with options that maximise energy efficiency, air quality and operational convenience. Contact Tranco Tech for a tailored recommendation.

Frequency Control (VSD)

Variable speed drive for demand-matched output. Significant energy savings in facilities with variable air consumption profiles.

Heat Recovery

Recover and reuse compression heat for process or building heating applications, improving whole-system energy efficiency.

Water Cooling

Water-cooled variants available for installations where heat rejection to atmosphere is constrained or plant room temperatures are elevated.

Container Solutions

The S-3 (132–315 kW) is especially suited to containerised plant rooms incorporating compressors, air treatment, and controls in a single modular enclosure.

Typical Applications

Compelling whatever
the configuration

The BOGE S-3 series is regarded as indispensable across industries, thanks in part to its intelligent design: the well-thought-out construction ensures very simple and safe maintenance, while the high quality of components and meticulous workmanship ensure a long machine life and maximum economy.

🏭Manufacturing

🧵Textile

💊Pharmaceutical

🍃Food & Beverage

⚡Energy

🔩Metal & Engineering

🌿Agriculture

🏗Construction

Need Help Choosing the Right Model?

Our engineering team will assess your flow rate requirements, operating pressure, duty cycle and site conditions — and recommend the right S-3 configuration for your application.

Request a Quote → Contact Our Engineers

No. 81, Aramaya Place, Colombo 09 · +94 114 348 437 · info@trancotech.com
